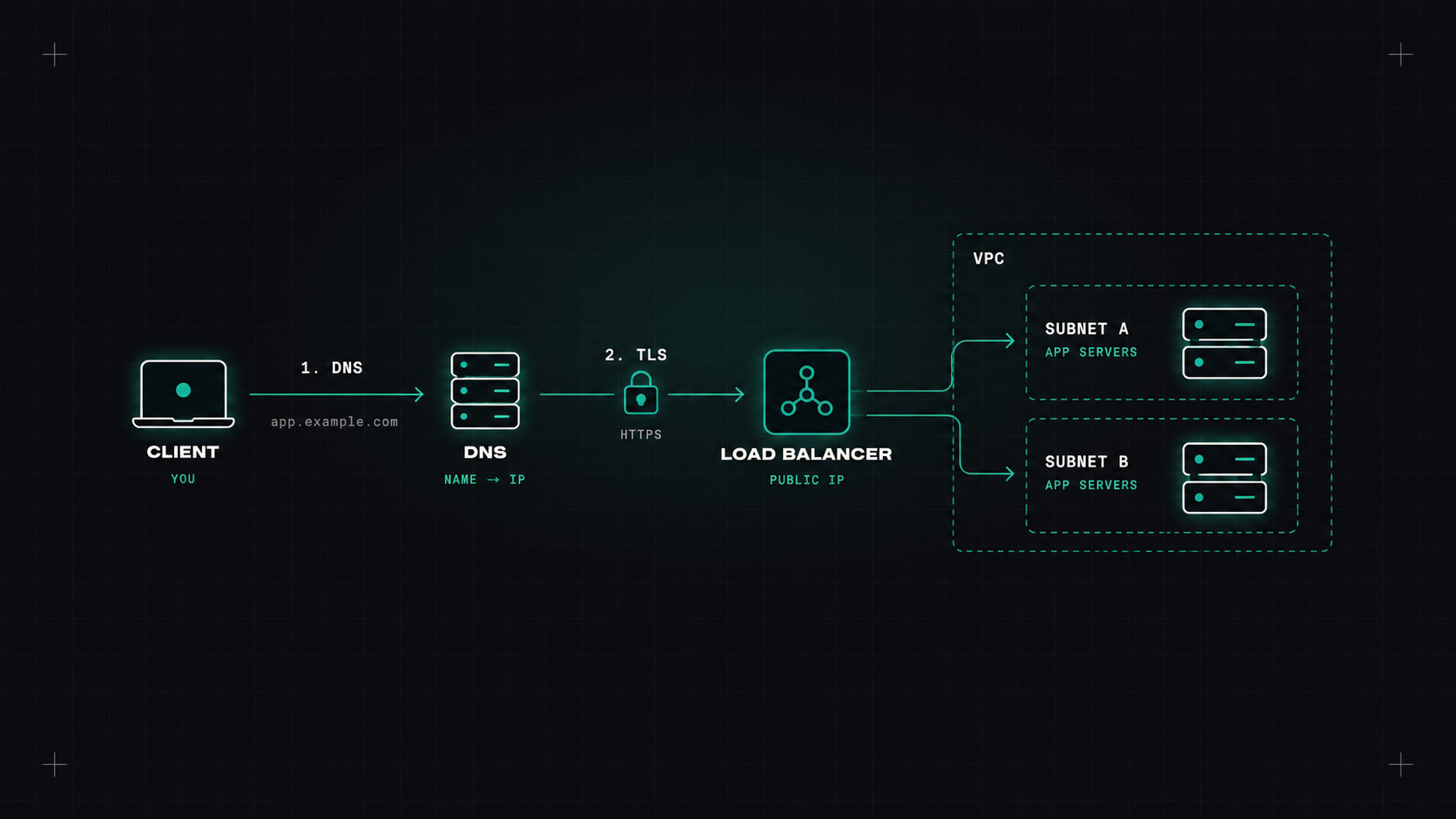

Networking basics every DevOps engineer needs

If I look back at the hardest problems I've debugged, a surprising number were networking problems in disguise. "The app is slow" turned out to be DNS. "The deployment failed" turned out to be a security group. "Kubernetes is broken" turned out to be overlapping IP ranges.

You don't need to be a network engineer to work in DevOps. But you do need a solid mental model of how packets get from A to B. Here's the version I wish I'd had at the start.

The layers that matter

You'll hear about the OSI model with seven layers. In daily DevOps work, four ideas matter most:

• IP (layer 3): every machine has an address, and routers decide how packets get from one network to another.
• TCP and UDP (layer 4): TCP gives reliable, ordered connections (most web traffic). UDP is fire-and-forget (DNS, video, some newer protocols like QUIC). Ports identify which application on a machine should receive the traffic.
• TLS: encryption on top of TCP. It's what puts the "S" in HTTPS.
• HTTP (layer 7): the application protocol most of our services speak.

When something doesn't work, I go up the layers: can I reach the IP? Is the port open? Does TLS work? Does HTTP return the right response?

IP addresses and subnets

An IP address like 10.0.12.34 belongs to a subnet, written in CIDR notation: 10.0.0.0/16 means "all addresses where the first 16 bits are 10.0", which is 65,536 addresses.

• /16: 65,536 addresses
• /20: 4,096
• /24: 256
• /28: 16

Private ranges (10.0.0.0/8, 172.16.0.0/12, 192.168.0.0/16) are used inside networks and aren't reachable from the internet directly. NAT (Network Address Translation) lets machines with private addresses reach the internet through a shared public address.

The most common mistake I see: overlapping ranges. Two VPCs both using 10.0.0.0/16 can never be connected. Kubernetes pod and service ranges that overlap with your office VPN cause mysterious failures. Plan IP ranges centrally, early.

DNS

DNS translates names (shop.example.com) into addresses. It's involved in almost every request, which is why "it's always DNS" is a running joke.

Key concepts:

• A / AAAA records: name to IPv4 / IPv6 address.
• CNAME: an alias pointing to another name.
• TTL: how long resolvers cache an answer. Low TTLs make changes fast; high TTLs reduce load and dependency on DNS.
• Resolvers: the servers that look up names for you. Inside Kubernetes, that's CoreDNS.

dig shop.example.com +short
dig shop.example.com +trace     # follow the lookup from the root servers

When something works by IP but not by name, it's DNS. When it works sometimes but not always, it's probably also DNS.

TLS and certificates

TLS does two things: encrypts traffic and proves identity. The server presents a certificate, signed by a certificate authority (CA) the client trusts, saying "I am shop.example.com".

Common problems:

• Expired certificates: automate renewal (cert-manager, Let's Encrypt, cloud certificate managers).
• Name mismatch: the certificate is for www.example.com, but you called example.com.
• Missing intermediate certificates in the chain.
• Internal CAs that clients don't trust.

openssl s_client -connect shop.example.com:443 -servername shop.example.com </dev/null | openssl x509 -noout -dates -subject

Load balancers

A load balancer spreads traffic across multiple backends and hides failures:

• Layer 4 (TCP/UDP) load balancers forward connections without looking inside. Fast and simple. Example: AWS Network Load Balancer.
• Layer 7 (HTTP) load balancers understand requests: they can route by path or host, terminate TLS, add headers. Examples: AWS Application Load Balancer, Envoy, NGINX, Kubernetes Gateway API implementations.

They rely on health checks to know which backends are healthy. A wrong health check path is a very common reason for "all backends unhealthy".

Designing a network in the cloud

A typical VPC design:

• Public subnets: for load balancers and NAT gateways. Have a route to the internet gateway.
• Private subnets: for applications and Kubernetes nodes. Reach the internet through NAT, not reachable from outside directly.
• Data subnets: for databases, reachable only from the application subnets.
• Spread across availability zones, so one zone failing doesn't take you down.
• Security groups (stateful, attached to resources) as the main firewall, and network ACLs (stateless, per subnet) only when needed.

Leave room to grow: give your VPC a large range and Kubernetes plenty of pod IPs, especially with CNIs that assign VPC addresses to pods.

My debugging tools

Question	Tool
What's my IP and route?	ip a, ip r
Does the name resolve?	dig, nslookup
Is the host reachable?	ping, mtr
Is the port open?	nc -zv host port
What's listening locally?	ss -tulpn
Does HTTP/TLS work?	curl -v
What's actually on the wire?	tcpdump, Wireshark

And one more question that saves a lot of time: from where am I testing? Your laptop, a pod, a node and a CI runner can all see very different networks.

So, where do I start?

Learn CIDR until subnetting feels natural, understand how DNS resolution works in your environment (especially in Kubernetes), and practise debugging with dig, nc, curl and ss. That foundation will save you countless hours.

My take: networking isn't magic, it's just layers. Learn to check them one at a time, and most mysteries solve themselves.

— Desly
